Product Dimensions 4.7034"h x 29.718"w x 19.812"d

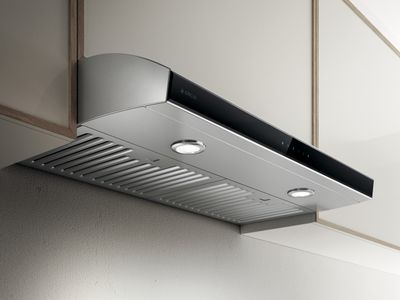

ARIA is an ideal choice where under-cabinet space is limited. Its upgraded 4-speed, internal blower provides sufficient ventilating power for most kitchens.Read More
ARIA is an ideal choice where under-cabinet space is limited. Its upgraded 4-speed, internal blower provides sufficient ventilating power for most kitchens.
ARIA also offers premium LED dimmable lighting, Baffle Slot stainless steel filters, glass touch controls that are hidden when the hood is off. ARIA can also be used as a recirculating system, when using the available kit.
General Specs | |
| Width (in.) | 29.718 |
| Height (in.) | 4.7034 |
| Depth (in.) | 19.812 |
| Collection | Aria |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 76 |
| Manufacturer Warranty | 2 Year |
| Color Finish Name | Stainless Steel with Black Glass |
| Range Hood Type | Under Cabinet |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Maximum CFM | 430 |
| Grease Filter Type | Baffle |
| Sones Rating | 1.1 - 4.7 |
| Width (cm) | 76.2 |
| Height (cm.) | 12.06 |
| Depth (cm.) | 50.8 |
| Voltage | 120 |
| Amp | 3.6 |
| Frequency | 60 |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Convertible (Both) |
Overview | |
| Noise (sones) | Min: 1.1, Max: 4.7 |
| Duct Transition | 3 1/4” x 10” with Back Draft Damper (top or rear), or 7” Round (top) sold separately |
| Installation Type | Ducted or Recirculating Installation (Recirculating Kit Sold Separately) |
| Product Material | Stainless Steel |
| Ship Dimensions | 34.01'' x 24.33'' x 9.80'' |
