Product Dimensions 12"h x 36"w x 18.5"d

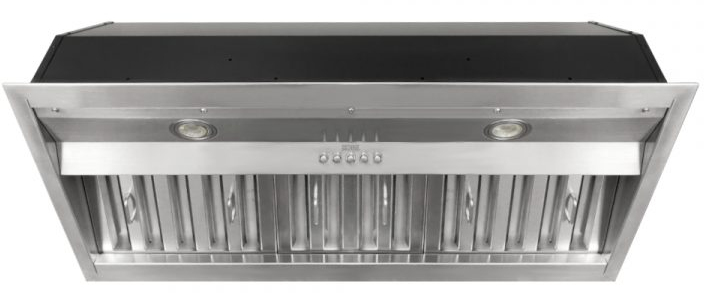

KOBE INX26 Series built-in / insert range hood is available in 30" and 36". This range hood is beautifully handcrafted with 20-gauge commercial grade stainless steel and will fit with custom cabinetry without the need for a liner.Read More
High performance with 630 CFM Internal Blower and operates quietly at 2.0 sone on QuietMode. It is equipped with 3-speed mechanical push button, dishwasher-safe baffle filters, and LED Lights. Optional liner INL36252B is available for 30″ hood only.
QuietMode™: At 180 CFM, this unique feature allows the KOBE range hood to operate at a reduced sound level of 80 decibels (2.0 sone).
Blower Type: Single Horizontal Squirrel Cage
Speed / Control: 3-Speed / Mechanical Push Button
CFM / Sone: 180 / 2.0 / Quiet Mode™, 317 / 4.5 / Low, 630 / 7.0 / High
Exhaust: Top: 6″ Round, Top: 3-1/4″ x 10″ Rectangular, Rear: 6″ Round, Rear: 3-1/4″ x 10″ Rectangular
Light: The hood is equipped with 3W LED lights.
Filters: Dishwasher safe professional baffle filters allow for easy cleaning.
Attractive Appearance: This powerful built-in range hood is designed to seamlessly fit with custom cabinetry 30″.
Easy to Clean: KOBE’s unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood.
Quality: Parts are checked for defects and designed for trouble free long term use.
Easy to Install: Our special design makes installation fast and easy.
colour: Commercial Grade Stainless Steel
General Specs | |
| Width (in.) | 36 |
| Height (in.) | 12 |
| Duct Size (in.) | 6" Round (15.24cm) / 3.25" x 10" Rectangular (8.26cm x 25.4cm) |
| Depth (in.) | 18.5 |
| Collection | Brillia |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 91 |
| Color/Finish Name | Stainless Steel |
| Manufacturer Warranty | 1 Year Labor / 2 Year Parts |
| Range Hood Type | Insert |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 36 |
| Smart Compatible | No |
| Maximum CFM | 630 |
| Grease Filter Type | Baffle |
| Bulb Type | LED |
| Sones Rating | 2.0 - 7.0 |
| Fan Speed Options | 3 |
| Vent Location | Top |
| Height Above Cooktop | 26 - 30 |
| Ventilation Direction | Vertical |
| Width (cm) | 91.44 |
| Height (cm.) | 30.48 |
| Depth (cm.) | 46.99 |
| Height Above Cooktop Centimeter | 66.04 - 76.20 |
| Amp | 1.5 |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Ducted |
Additional Information | |
| Control | Mechanical Push Button |
| QuietMode™ | 2.0 Sone |
| Ducting | Vertical and Horizontal |
| ECO Mode | No |
| Optional Accessories | Backsplash Panel |
