Product Dimensions 12"h x 34.38"w x 19.25"d

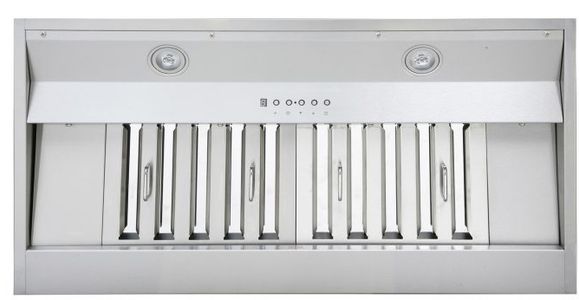

KOBE Premium 36-inch built-in/ insert range hood seamlessly fits with custom cabinetry without the need for a liner. High performance with 750 CFM internal blower and operates very quietly.Read More
The range hood comes with stainless steel baffle filters, versatile multi-exhaust options for both top and rear venting, LED lights with 3-level lighting, electronic button control and ECO Mode. Wireless Remote Control is sold separately.
QuietMode™: At 300 CFM, this unique feature allows the KOBE range hood to operate at a reduced sound level of 40 decibels (1.0 sone).
Blower Type: Single Horizontal Squirrel Cage
Speed / Control: 6-Speed / Electronic Button Control / Delay Shutoff – 3 Minutes
CFM / Sone: 300 / 1.0 / QuietMode™, 420 / 2.0 / Speed 1, 510 / 3.5 / Speed 2, 590 / 5.0 / Speed 3, 640 / 5.4 / Speed 4, 750 / 6.0 / Speed 5
Exhaust: Top 6″ Round, Top 3-1/4″ x 10″ Rectangular, Rear 6″ Round, Rear 3-1/4″ x 10″ Rectangular
Light: The hood is equipped with 3W LED lights with 3-level lighting.
Filters: Dishwasher safe professional baffle filters allow for easy cleaning.
Attractive Appearance: This powerful built-in range hood is designed to seamlessly fit with custom cabinetry 30″ without the use of a liner.
Time Delay Control: The Time Delay System features a 3-minute delay shutoff.
ECO Mode: ECO Mode runs the fan on the QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odors to promote a cleaner kitchen air quality.
Easy to Clean: KOBE’s unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood.
Quality: Parts are checked for defects and designed for trouble free long term use.
Easy to Install: Our special design makes installation fast and easy.
colour: Commercial Grade Stainless Steel
General Specs | |
| Width (in.) | 34.38 |
| Height (in.) | 12 |
| Duct Size (in.) | 6" Round (15.24cm) / 3.25" x 10" Rectangular (8.26cm x 25.4cm) |
| Depth (in.) | 19.25 |
| Collection | Premium |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 87 |
| Manufacturer Warranty | 2 Year Parts & Labor |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Insert |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 36 |
| Smart Compatible | No |
| Maximum CFM | 750 |
| Grease Filter Type | Baffle |
| Bulb Type | LED |
| Sones Rating | 1.0 - 6.0 |
| Fan Speed Options | 6 |
| Vent Location | Top |
| Ventilation Direction | Vertical |
| Width (cm) | 87.31 |
| Height (cm.) | 30.48 |
| Depth (cm.) | 48.9 |
| Amp | 2.5 |
| Range Hood Features | Automatic Shut Off |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Ducted |
Additional Information | |
| Control | Electronic Buttons |
| QuietMode™ | 1.0 Sone |
| Ducting | Vertical and Horizontal |
| Optional Accessories | Backsplash Panel, Wireless Remote Control |
