Product Dimensions 47.88"h x 29.75"w x 22"d

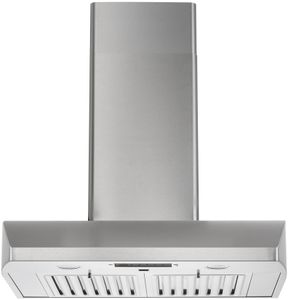

KOBE Range Hoods’ CH22 Series is a hands-free fully auto range hood and compatible with all brands of gas ranges! The flame and temperature sensor automatically turns on and adjust the fan speed while cooking and turns it off after cooking.Read More
Available as under cabinet or wall mount with optional duct cover. Other features include ECO Mode™ technology, delay shutoff and 3-level lighting. Our exclusive ECO Mode™ uses very little power to turn the fan on at QuietMode™ for 10 minutes every hour to refresh the air.
First hands-free fully auto residential hood!
Compatible with all brands of gas ranges
Flame & Temperature sensor to allow hood to turn on/off and adjust fan speed automatically
ECO Mode to promote a cleaner kitchen air quality
Easy to clean baffle filters to catch grease efficiently
Includes 3-watt LED Lights that require less energy than Halogen Lights
Can be used as under cabinet or wall mount with optional chimney
General Specs | |
| Width (in.) | 29.75 |
| Height (in.) | 47.88 |
| Duct Size (in.) | 6" Round |
| Depth (in.) | 22 |
| Collection | Premium |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 76 |
| Manufacturer Warranty | 2 Year Parts & Labor |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Maximum CFM | 680 |
| Grease Filter Type | Baffle |
| Bulb Type | LED |
| Sones Rating | 2.0 - 7.0 |
| Fan Speed Options | 6 |
| Vent Location | Top |
| Height Above Cooktop | 26 - 30 |
| Ventilation Direction | Vertical |
| Width (cm) | 75.57 |
| Height (cm.) | 121.60 |
| Depth (cm.) | 55.88 |
| Height Above Cooktop Centimeter | 66.04 - 76.20 |
| Amp | 3 |
| Range Hood Features | Automatic Shut Off, Heat Sensor |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Ducted |
Additional Information | |
| Control | Electronic Button |
| QuietMode™ | 2.0 Sone |
| Ceiling (Min) | 7.5 feet |
| Ceiling (Max) | 9.5 feet |
| Fits Ceiling Heights | 7.5', 8', 8.5', 9', 9.5' |
| Optional Accessories | Backsplash Panel, Remote Control |
